Product Description

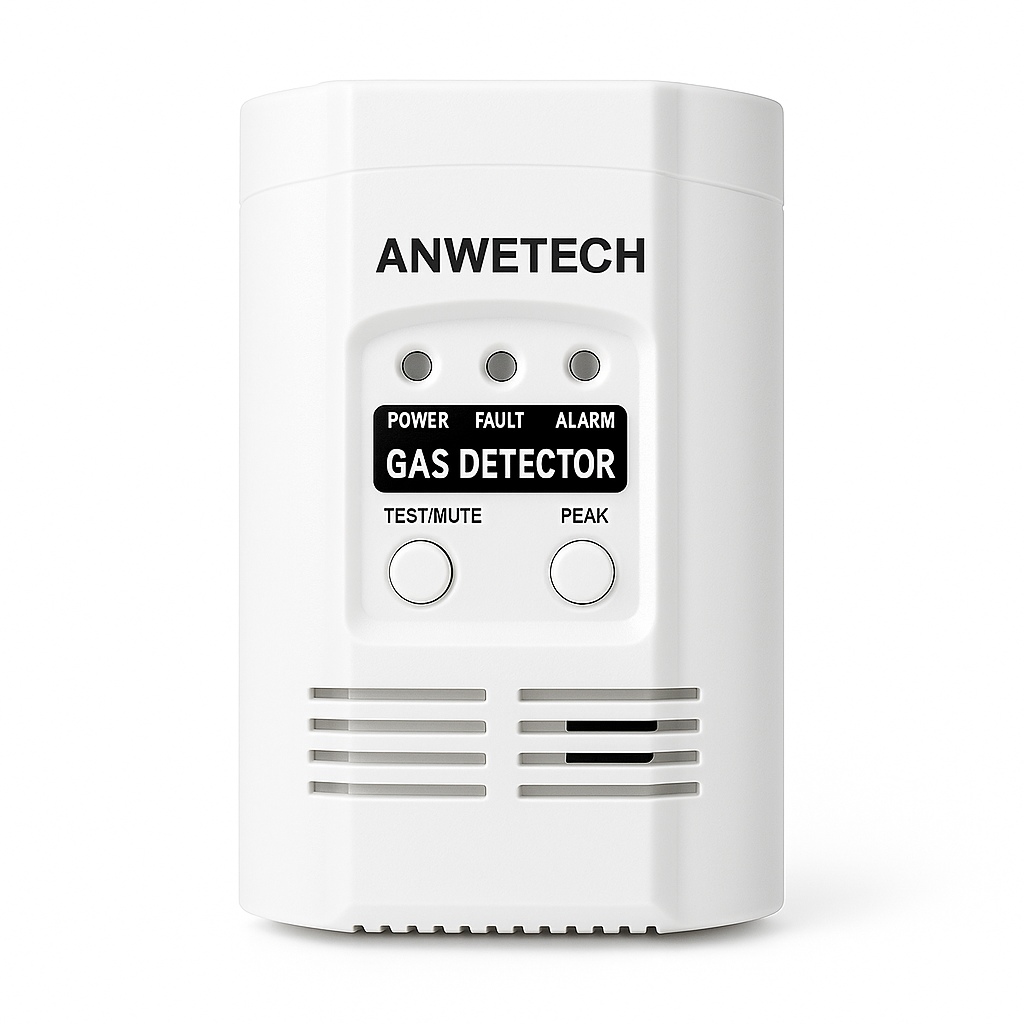

This AC powered gas and carbon monoxide detector is designed for both single-station use and for connection to fire alarm or security alarm panels. Using a high-quality, durable sensor and MCU-based self-diagnostic technology, it continuously monitors for leaks of natural gas (methane), LPG/LNG, town gas, coal gas and carbon monoxide. When the gas concentration reaches the preset threshold, the unit activates a loud 80 dB alarm and red LED indicator to warn occupants at an early stage.
Compact in size and finished in ceiling white, the detector is suitable for wall mounting in homes, small commercial properties and recreational vehicles. It supports AC110V or AC220V input with low power consumption and includes optional relay output (NO/NC/COM) and DC12V pulse or steady voltage output, making it easy to interface with exhaust fans, gas shut-off valves or external alarm panels. With wide operating temperature and humidity ranges, quick warm-up time and clear status LEDs for power, fault and alarm, this gas/CO detector is an ideal choice for kitchen safety and small project integration.
Detects natural gas (methane), LPG, LNG, town gas, coal gas
Designed for single station use or connection to fire alarm / security alarm panel
AC110V or AC220V wire-in or plug-in power supply options
Loud 80 dB alarm with red LED alarm indication
Green power LED, yellow fault LED, red gas alarm LED
Self-diagnostic function with MCU intelligent software
High quality, durable sensor with excellent reliability and stability
Optional relay output (NO/NC/COM) or DC12V pulse/steady voltage output
Easy wall-mounted installation, ideal for kitchens and small rooms
| Item | Specification |
|---|---|
| Power Supply | AC110V or AC220V (wire-in or plug-in) |
| Power Consumption | <1.5 W (Standby), <5 W (Alarm) |
| Unit Dimensions | 120 mm (H) × 72 mm (W) × 42 mm (D) |
| Color | Ceiling White |
| Operating Temperature | -10°C to +50°C |
| Ambient Humidity | ≤95% RH (non-condensing) |
| Alarm Horn | 80 dB audible alarm |
| Detectable Gases | Natural gas (methane), LPG / LNG, town gas, coal gas, carbon monoxide (CO) |
| LNG Detection Threshold | 5000 ppm (≈10% LEL) |
| CO Alarm Response Time | >100 ppm: alarm <15 min; >300 ppm: alarm <3 min |
| Warm-up Time | Approx. 60 seconds after power up |
| Alarm Indication | Red LED + 80 dB sounder |
| Relay Output (option) | NO/NC/COM, 2 A @ DC24V, 1 A @ AC220V |
| Voltage Output (option) | DC12V pulse or steady (selectable by JP1: DCF = pulse, JXS = continuous) |
| Terminals (control output module) | T1 OP+ (Voltage +), T2 OP- (Voltage -), T3 NO, T4 NC, T5 COM |
| Installation | Wall mounted, position depends on gas type (near ceiling for natural gas, near floor for LPG) |
Residential kitchens and utility rooms
Small commercial kitchens and food shops
Apartments, small offices and retail spaces
RVs and recreational vehicles (where AC supply is available)
Areas where gas-fired appliances are installed (stoves, boilers, heaters, etc.)
Projects requiring gas alarm + relay/12V output to drive fans, valves or alarm panels
