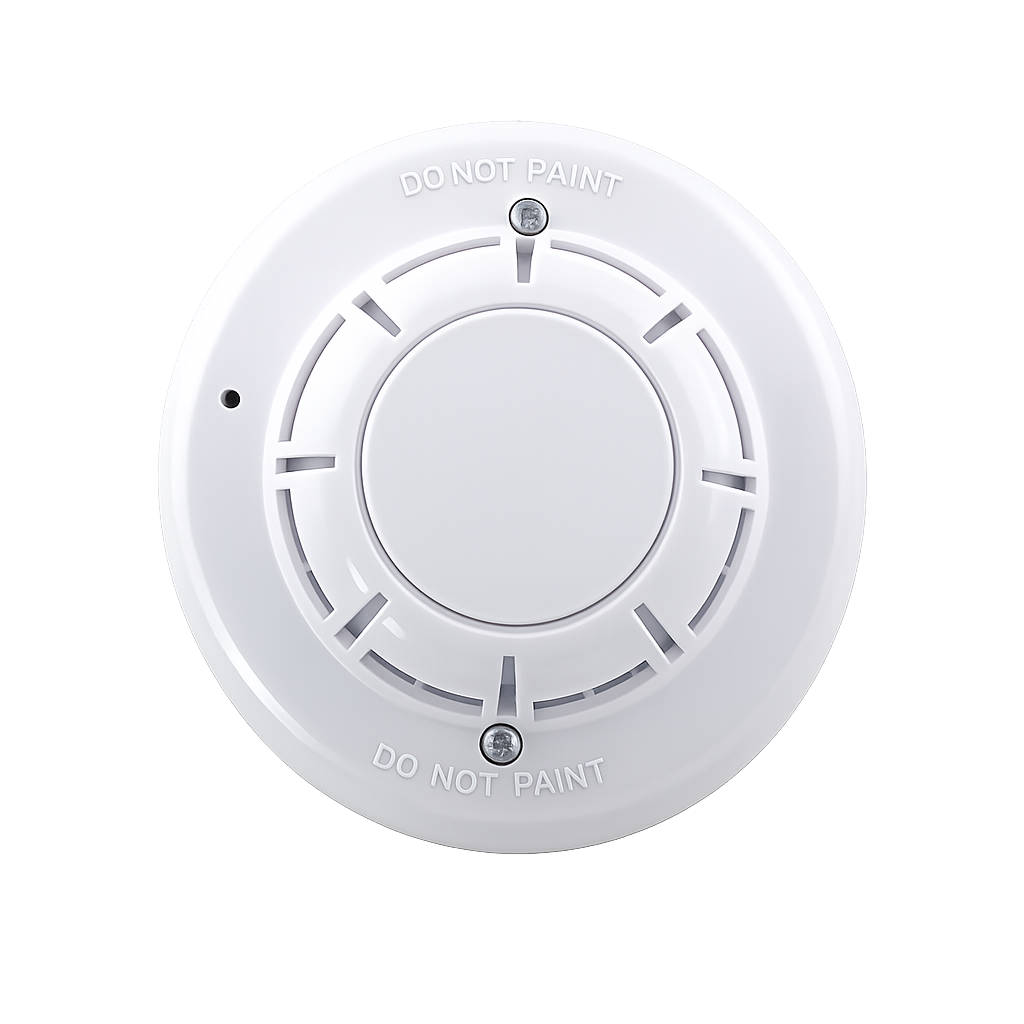

ANWETECH AT-H206 is a 2-wire fixed temperature heat detector designed for fire alarm systems. It uses a high-precision heat sensor, wide DC9–36V operating voltage and stable SMT design for reliable fire detection in residential, commercial and industrial applications.
The ANWETECH AT-H206 is a 2-wire heat detector designed to detect abnormal temperature rise in indoor environments. Based on high-precision heat sensing technology, the detector provides stable and reliable fire detection performance for applications where heat detection is preferred over smoke detection.
With advanced SMT production technology and optimized internal structure, the AT-H206 offers strong anti-dust capability, improved resistance to electromagnetic interference and reduced false alarms. Its compact ceiling-mounted design makes it suitable for houses, villas, office buildings, shopping malls, factories, warehouses and other indoor applications.
The AT-H206 is ideal for conventional fire alarm systems requiring a 2-wire heat detector with low standby current, stable operation and simple installation.
Operating voltage: DC9–36V
Static current: ≤50uA
Alarm current: ≤50mA
Environment temperature: -10°C to +85°C
Alarm temperature: 57°C
Alarm reset: Power reset / auto reset
Mounting method: Ceiling mounted
Detecting area: 20 m²
Indicator: Flash once every 35 s
Output mode: Network alarm
Sensor type: High precision heat sensor
Product size: 100 mm (diameter) × 57 mm (height)
2-wire version:
