Detailed Description

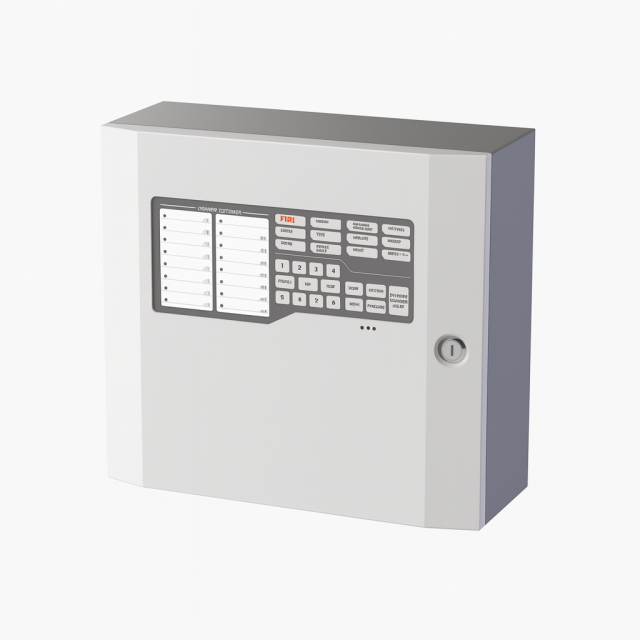

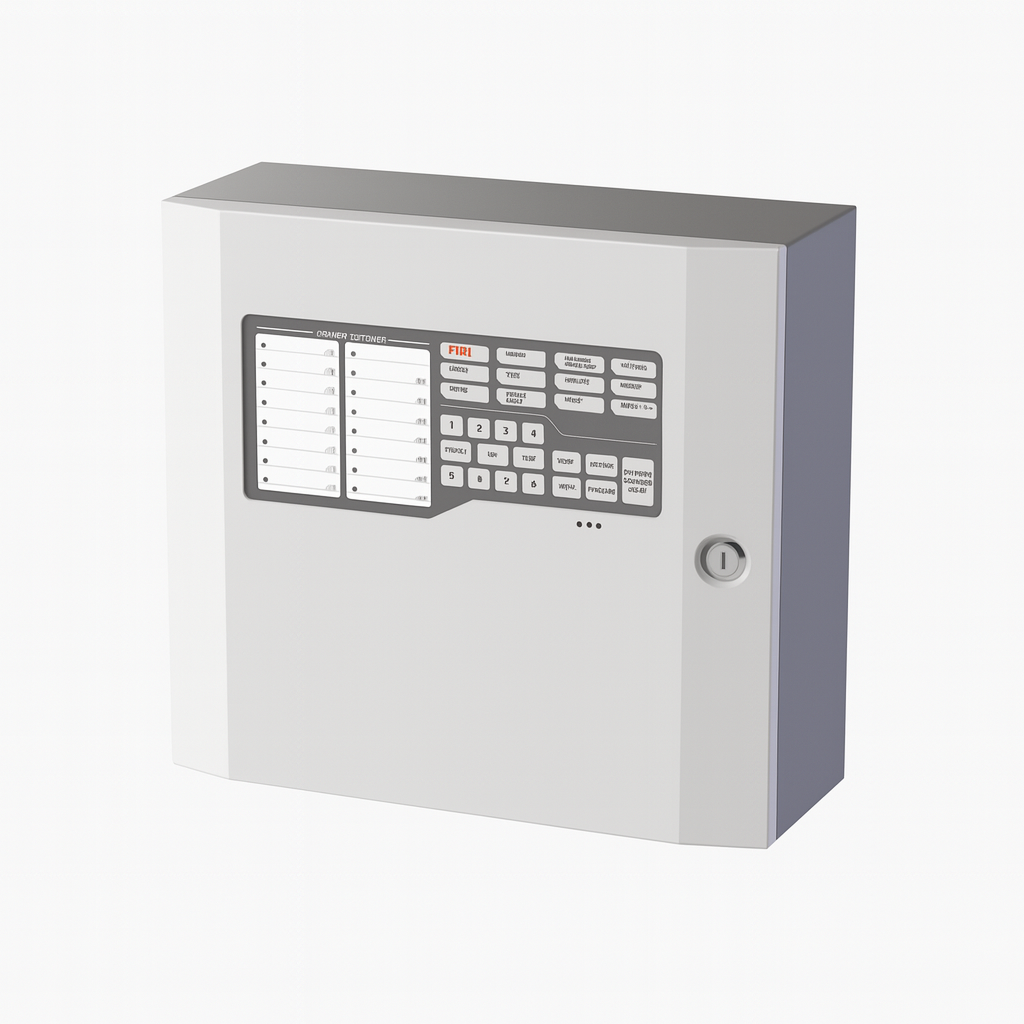

The Anwetech AT-F202-32 fire alarm control panel offers intelligent monitoring, battery backup, and reliable 24V auxiliary outputs for sounders or external devices.
Each detection zone can connect up to 32 detectors, providing accurate and fast fire detection capability.
The system includes 4 sounder circuits, zone isolation, and automatic fault detection, enhancing safety and efficiency during operation.
With 26.5V–28.5V DC regulated power supply, the panel delivers stable performance, while its compact and durable design allows easy wall mounting and servicing.
This control panel is an ideal choice for industrial and commercial fire alarm installations requiring reliable and cost-effective fire protection.
Key Features
Up to 16 detection zones (32 devices per zone)
Walk test and zone disablement functions
4 sounder circuits and repeater communication interface
Built-in charger for 7Ah backup batteries
EN54-2 and EN54-4 certified
Compact and user-friendly design
Applications
Commercial buildings and offices
Hospitals, hotels, and schools
Industrial facilities and factories
Shopping centers and public areas
