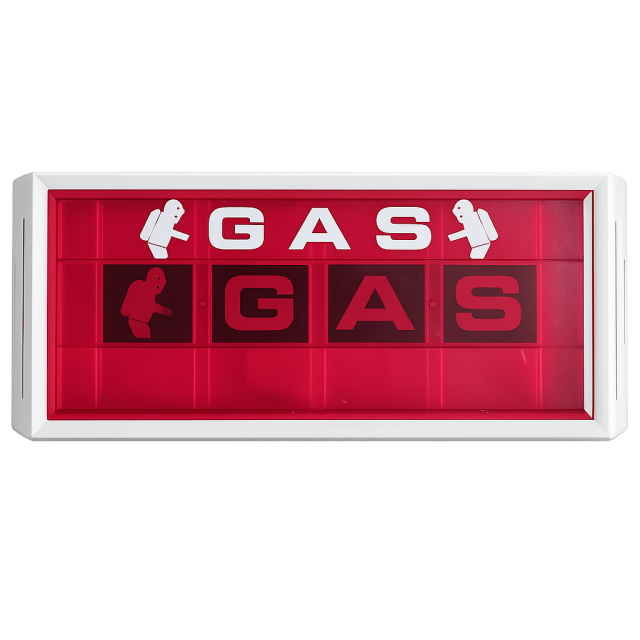

The ANWETECH AT-F324 Gas Discharge Alarm is a wall-mounted visual warning device used in gaseous fire suppression systems. It is designed to provide a clear flashing indication when the extinguishing control panel sends a discharge warning signal, helping personnel recognize that clean agent release is about to occur or is already in progress.
With a two-wire design, the AT-F324 is easy to install and suitable for use at protected room entrances, evacuation routes and other clearly visible locations defined by the project design. Its flashing indication rate of at least 120 flashes per minute ensures strong visual attention in emergency conditions.
The AT-F324 is a practical choice for gas extinguishing projects, clean agent systems and suppression warning applications where reliable visual discharge indication is required. It is especially suitable for control rooms, electrical rooms, server rooms, archives, communication rooms and other protected spaces using gaseous fire suppression.
| Item | Specification |
|---|---|
| Model | AT-F324 |
| Product Name | Gas Discharge Alarm |
| Rated Current | ≤ 30 mA |
| Indication Mode | Flashing, ≥ 120 flashes/min |
| Wiring | 2-wire |
| Operating Temperature | -10°C to +50°C |
| Operating Humidity | ≤ 95% RH, non-condensing |
| Dimensions (W × H × D) | 300 × 120 × 26 mm |
When the extinguishing control panel outputs the discharge alarm signal, the AT-F324 flashes continuously to provide a visual warning to nearby personnel.
