Detailed Description

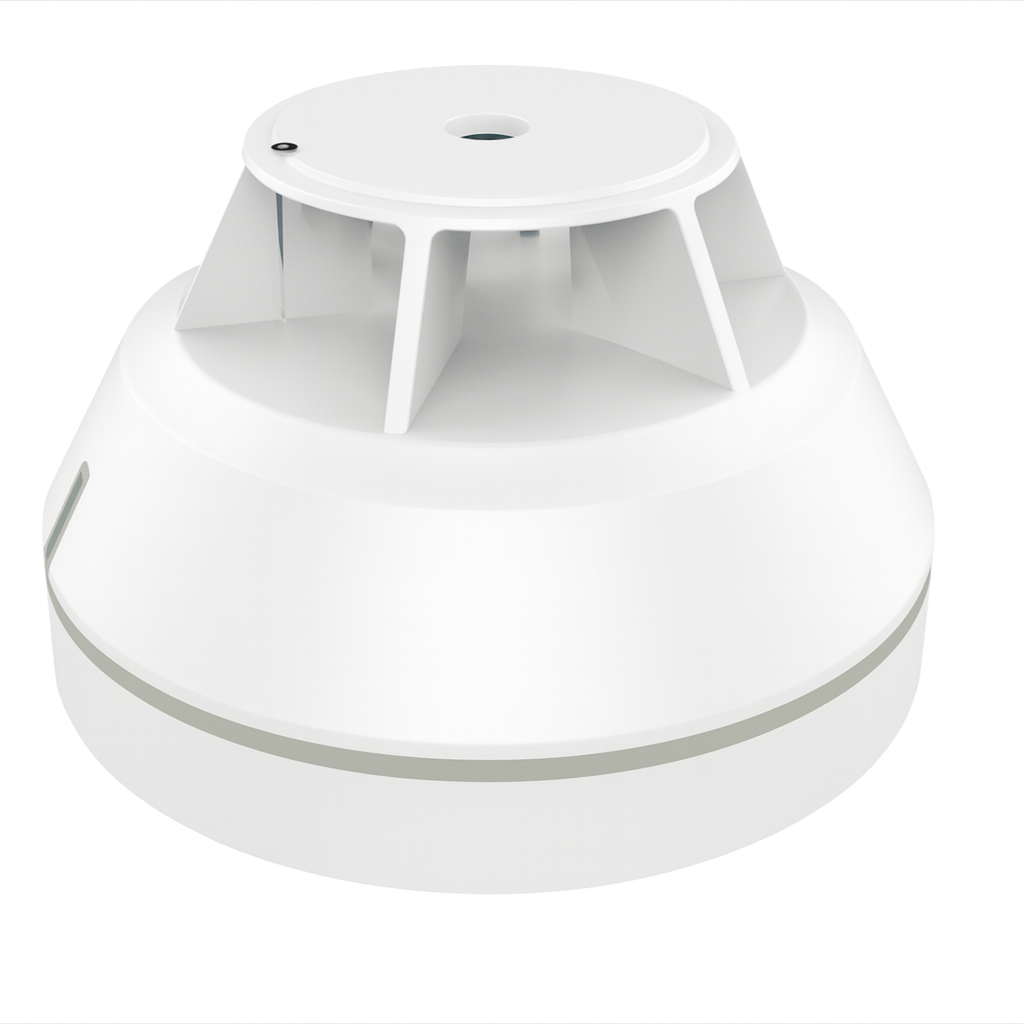

The Anwetech AT-H101 is a high-quality addressable heat fire detector built to meet modern fire safety standards.
With a 24V loop voltage (18V–28V), low standby current (<0.3mA), and intelligent electronic addressing, it integrates seamlessly into Anwetech addressable fire alarm systems.
The built-in microcontroller ensures accurate thermal response, enabling fast alarm activation when a temperature rise is detected.
The detector’s red LED indicator flashes during polling and stays illuminated in alarm mode, allowing clear visual confirmation.
Made from durable ABS material, the AT-H101 performs reliably under harsh environments with a temperature range of -10°C to +50°C and humidity up to 95% (non-condensing).
It’s the perfect solution for fire safety in industrial facilities, commercial buildings, and energy plants where high heat levels are common.
Key Features
Soft addressing and field reprogramming via coder
Two-wire, non-polar bus connection
Real-time microprocessor temperature monitoring
Red LED indication for alarm status
Compact ABS enclosure with high durability
Ideal for heat-based fire detection environments
Applications
Kitchens, boiler rooms, and generator rooms
Industrial drying plants and workshops
Mechanical and smoking areas
Commercial and energy facilities
