Product Description

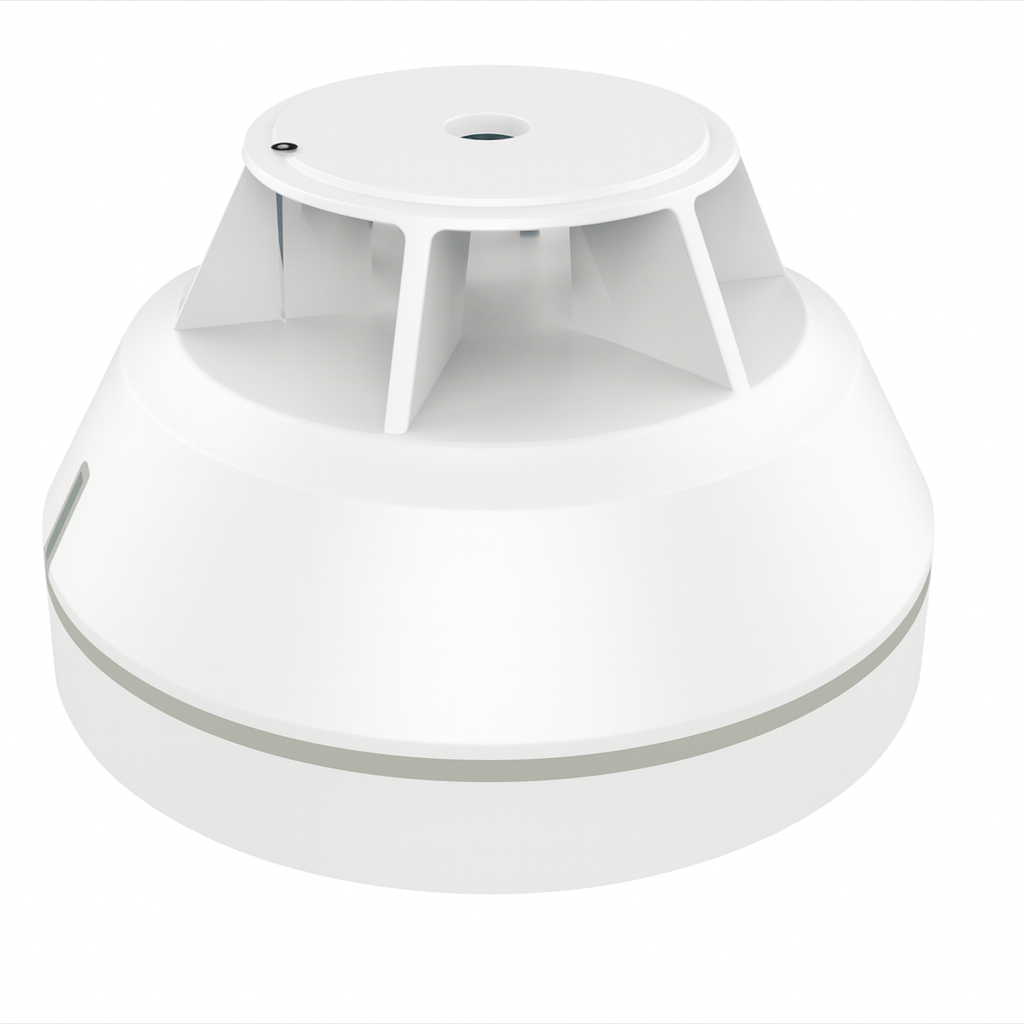

The AT-H201 conventional heat detector is a fixed temperature heat detector with real-time temperature monitoring, allowing quick response to abnormal ambient temperature rises.
It is compatible with most conventional fire alarm control panels, offering stable performance, simple wiring, and easy maintenance.
Designed with an upper and lower cover, the detector is convenient to install and maintain.
It features a non-addressable, non-polar, two-bus wiring structure and uses DC24V (18V–30V) operating voltage.
The unit operates reliably in indoor environments ranging from −10°C to +50°C, with humidity up to 95% RH (non-condensing).
It is ideal for industrial fire alarm systems, commercial building fire protection, and civil building fire detection, especially in areas with potential heat accumulation.
Applications
Kitchens and boiler rooms
Generator and drying plants
Industrial workshops
Smoking rooms
Commercial and civil buildings
Key Features
EN54-5 certified conventional heat detector
Non-polar two-wire connection, DC24V operation
Red LED indicator for status monitoring and alarm indication
Compact design: Ø100mm × 47mm (without base)
Compatible with standard conventional panels
