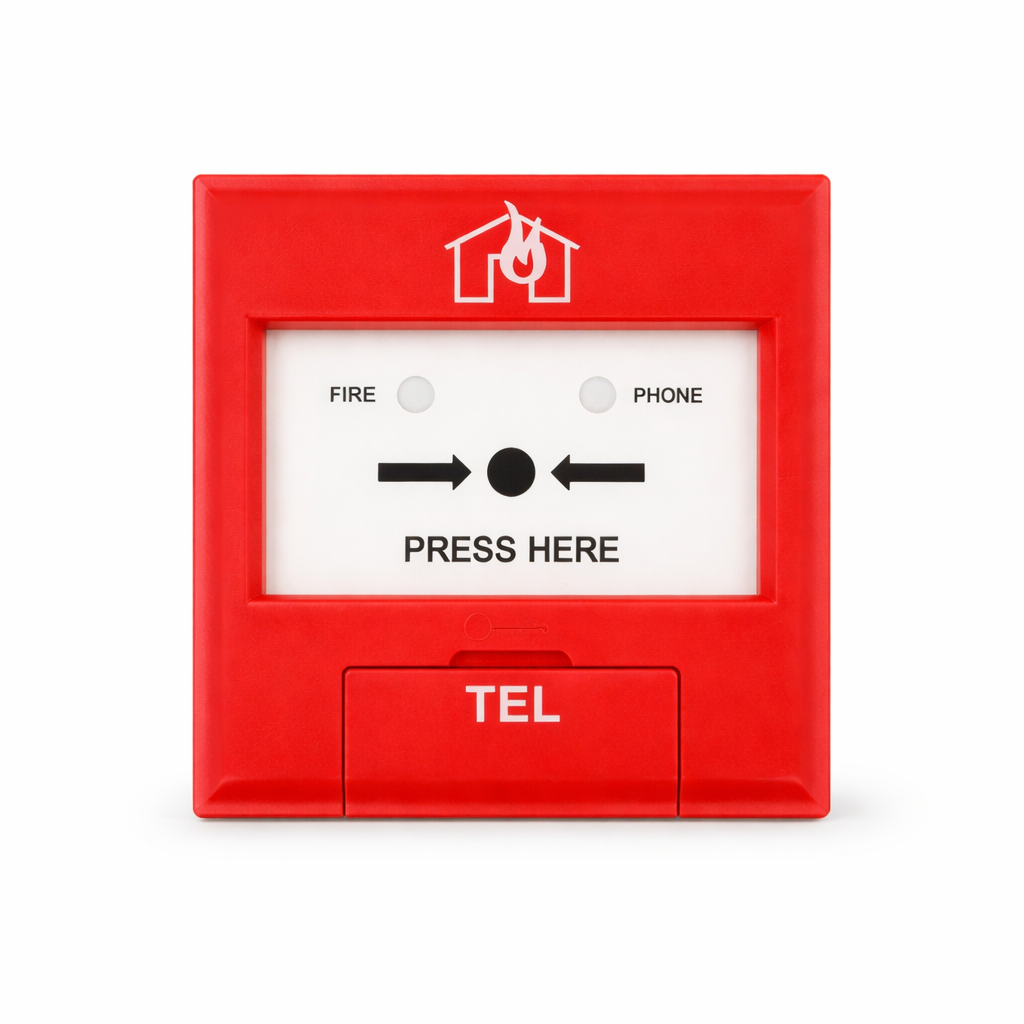

The AT-M202 Manual Call Point is a high-reliability emergency fire alarm activation device designed for conventional fire alarm systems.
It allows building occupants to manually trigger the fire alarm system to alert emergency responders and evacuate personnel.
Featuring a resettable push element, non-polar wiring design, and plug-in installation, the AT-M202 ensures fast deployment and stable performance.
Engineered for long-term durability in commercial and industrial applications, this manual call point is suitable for corridors, staircases, lobbies, and public access areas.
Anwetech is a professional China fire alarm system manufacturer & China supplier, providing full fire detection solutions including manual call points, smoke detectors, heat detectors, alarm panels, and emergency voice systems.
Resettable push-button alarm element
Non-polar wiring design for easy installation
Surface mount back box included
Durable housing for commercial environments
Plug-in wiring terminal structure
Suitable for conventional fire alarm systems
Commercial Buildings
Industrial Facilities
Warehouses & Logistics Centers
Residential Compounds
Offices & Schools
Shopping Malls & Public Venues
| Item | Description |
|---|---|
| Model | AT-M202 |
| Working Voltage | DC 20V – 28V |
| Standby Current | <20 μA |
| Alarm Current | ≤40 mA |
| Wiring | Non-polar 2-wire system |
| Operating Temperature | −10°C ~ +55°C |
| Humidity | ≤95% RH (non-condensing) |
| Dimensions | 85 × 85 × 41 mm |
| Cable Requirement | RVS ≥ 1.0mm² |
