Detailed Product Description

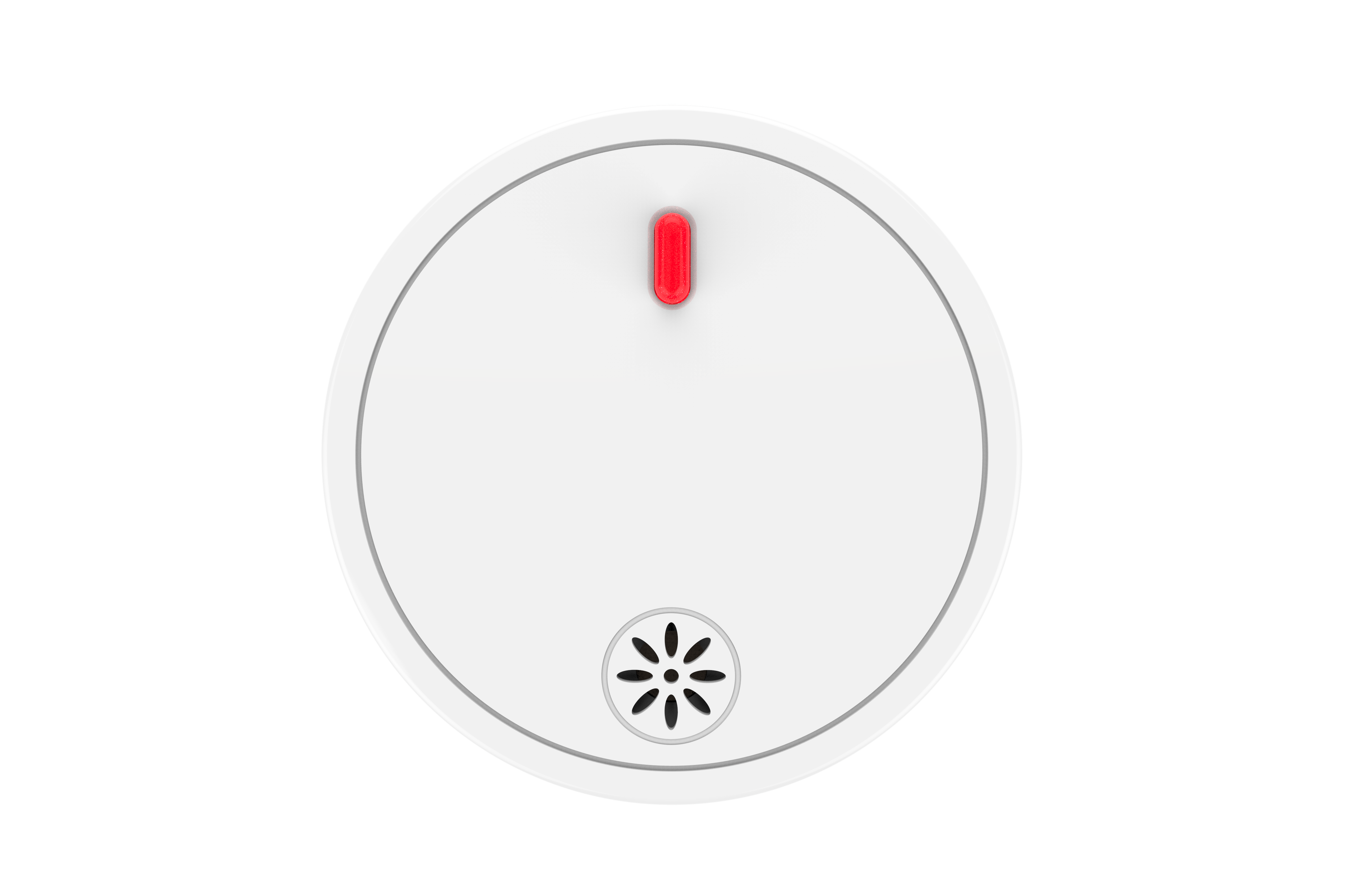

ANWETECH AT-S229 is a photoelectric smoke alarm designed to provide early warning by sending out sound and light alarm signals at the early stage of fire when properly installed and maintained. It is suitable for household and similar residential applications where dependable smoke detection is required.
This smoke alarm is powered by 220V-240V AC mains and includes a 9V replaceable battery backup, allowing the unit to continue operating for approximately one to three months when AC power is off. It can be used as a standalone alarm or interconnected with up to 24 compatible units for wider residential coverage.
The unit features a photoelectric sensing design, a Test/Hush button, green and red LED indicators, speaker grill, and low battery warning. In normal condition, the green LED shows AC mains power is present, while the red LED flashes every 33 seconds as part of the self-test cycle. When smoke is detected, the red LED flashes once every second and the alarm sounds with repeated long beeps.
The hush function can temporarily desensitize the alarm circuit for approximately 8 minutes, helping reduce nuisance alarms in non-emergency situations. For proper operation, the battery should be replaced once a year, and the full alarm unit is recommended to be replaced 10 years after installation.
Technical Specifications
Model: AT-S229
Product Type: Photoelectric Smoke Alarm
Power Supply: 220V-240V AC, 50Hz
Current: 80mA
Sensor Type: Photoelectric
Installation Type: Mains powered with battery backup
Battery Backup: 1 x 9V replaceable battery
Battery Backup Duration: Approximately 1 to 3 months when AC power is off

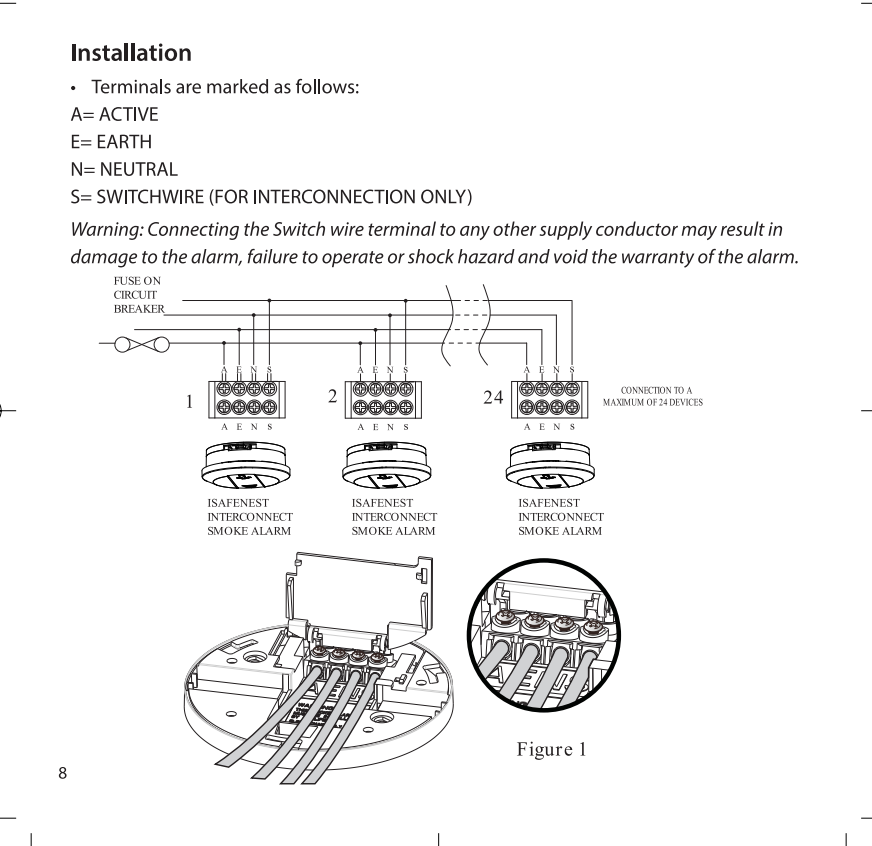

Interconnection: Up to 24 units
Control Function: Test and Hush button
Indicators: Green LED and Red LED
Low Battery Warning: Yes
Normal Status: Green LED on, red LED flashes every 33 seconds
Alarm Status: Red LED flashes once every second, repeat 3 long beeps
Hush Mode: Temporary hush for about 8 minutes
Recommended Battery Replacement: Once a year
Recommended Alarm Replacement: 10 years after installation
Application: Household and similar residential applications
