Detailed Description

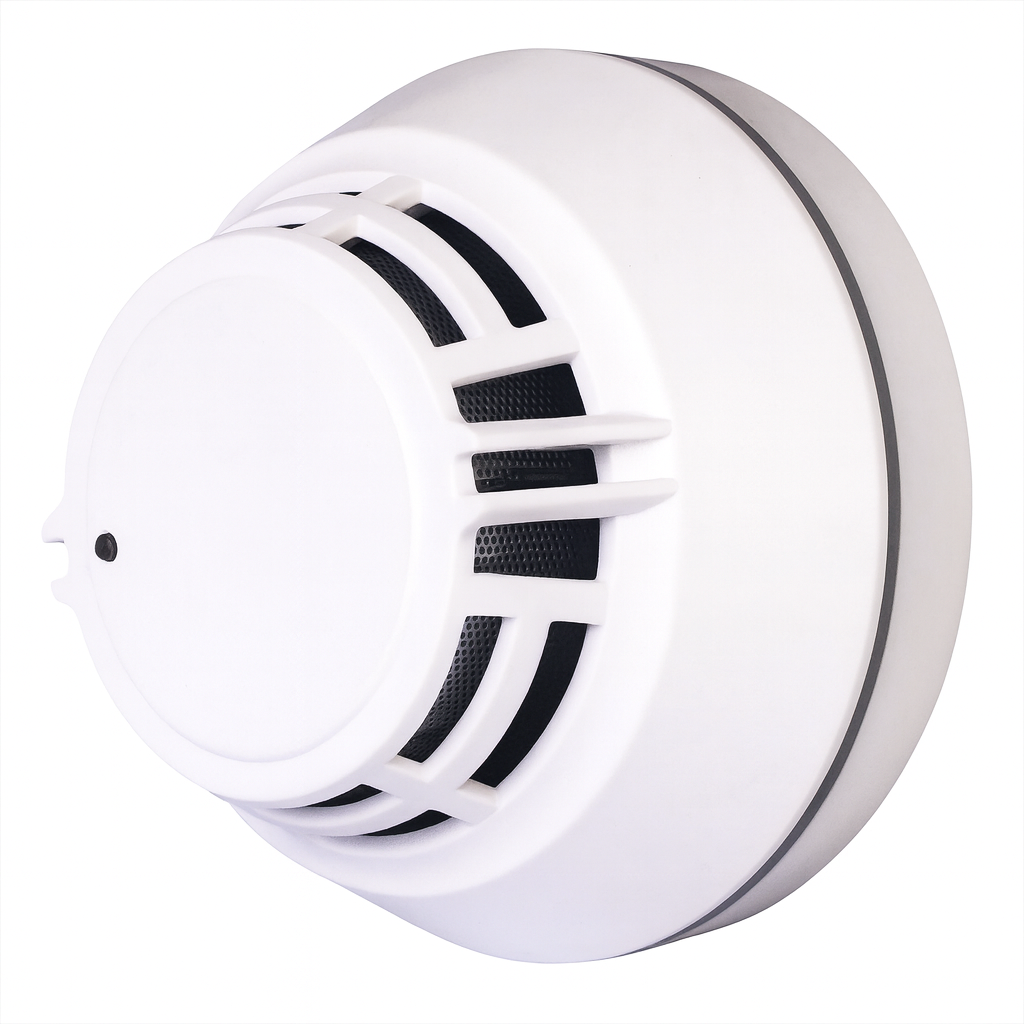

The Anwetech AT-SH101 detector is built to deliver precise and reliable detection performance for commercial, industrial, and institutional buildings.
It integrates photoelectric smoke sensors and dual temperature sensors to respond quickly to both smoldering and flaming fires.
Its loop-powered design (24V, 20V–28V) and low current consumption provide efficient system operation, while the electronic addressing system allows each detector to occupy a unique address (1–324).
The AT-SH101 features a flashing red LED for alarm indication, a durable ABS enclosure, and reliable operation under -10°C to +50°C and ≤95% humidity.
This dual-function detector enhances fire safety in complex environments such as offices, hotels, factories, hospitals, and data centers.
Key Features
Dual smoke and temperature sensing
Electronic addressing, soft reprogramming via coder
Two-wire non-polar loop connection
Red flashing LED for alarm indication
Wide temperature range and high humidity tolerance
Compatible with Anwetech addressable panels
Applications
Commercial buildings and offices
Hotels and hospitals
Industrial facilities and warehouses
Schools, data centers, and public buildings
