Description

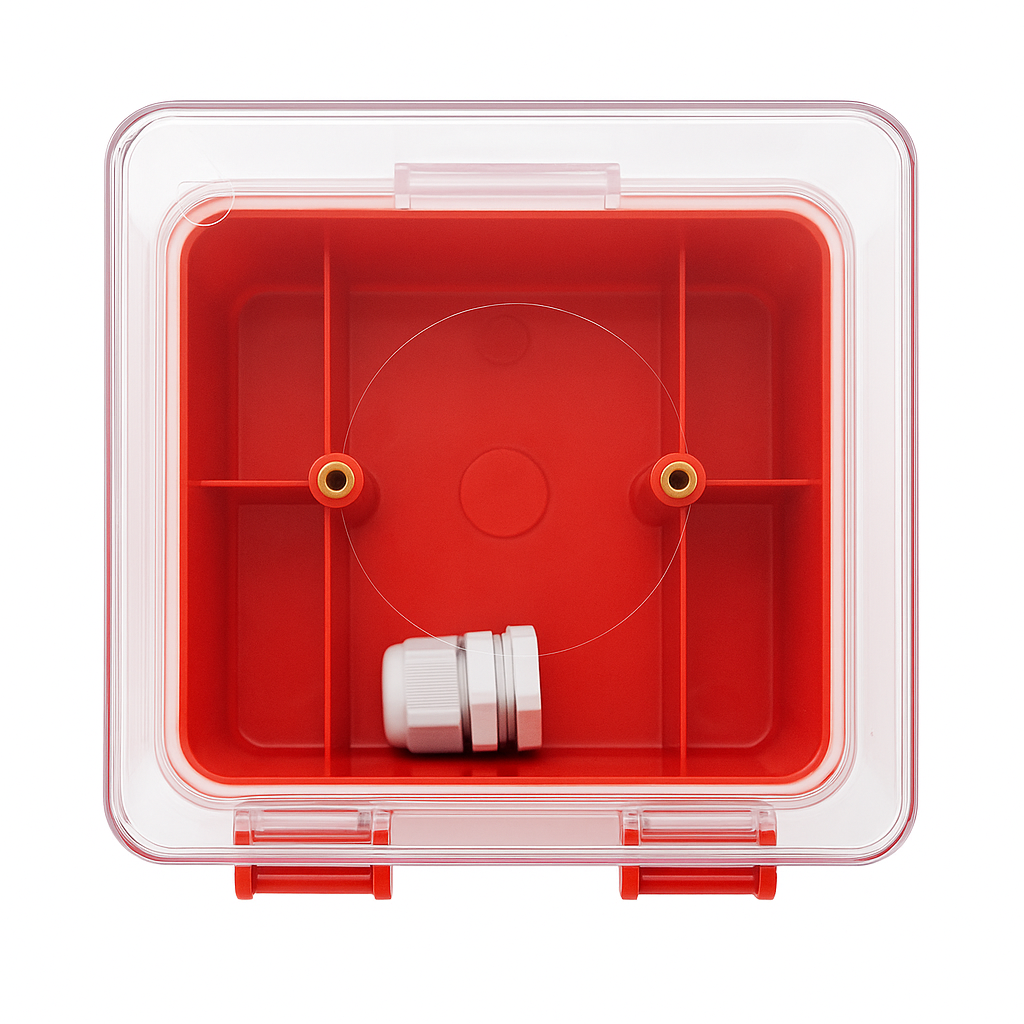

The AT-W04 Manual Call Point Waterproof Box is a high-protection enclosure designed to safeguard manual call points against environmental influences such as moisture, dust, and rain.
Featuring an IP66-rated enclosure, it provides complete waterproofing while maintaining the accessibility and visibility of the manual call point during fire alarm activation.
The unit includes multiple knock-out cable entry holes on the top, bottom, and rear for easy wiring and installation flexibility.
Constructed with polycarbonate and ABS materials, the AT-W04 offers excellent mechanical strength, impact resistance, and UV stability, ensuring reliable performance over extended service life.
It is compatible with standard Anwetech manual call point models such as AT-M101 and can be used in various commercial, industrial, and public installations.
Technical Specifications
| Item | Specification |
|---|---|
| Model | AT-W04 |
| Protection Rating | IP66 |
| Inlet Hole | Φ20.6 mm |
| Dimensions (W × H × D) | 156 × 154 × 87 mm |
| Upper Cover Material | Polycarbonate (PC) |
| Lower Cover Material | Acrylonitrile Butadiene Styrene (ABS) |
| Installation | Wall or surface mounted |
| Suitable Devices | Manual call points |
| Application | Outdoor / semi-outdoor use |
Applications
Manual call points in outdoor or humid environments
Industrial facilities, warehouses, and tunnels
Public buildings, car parks, and transport terminals
Fire alarm systems requiring weatherproof protection
