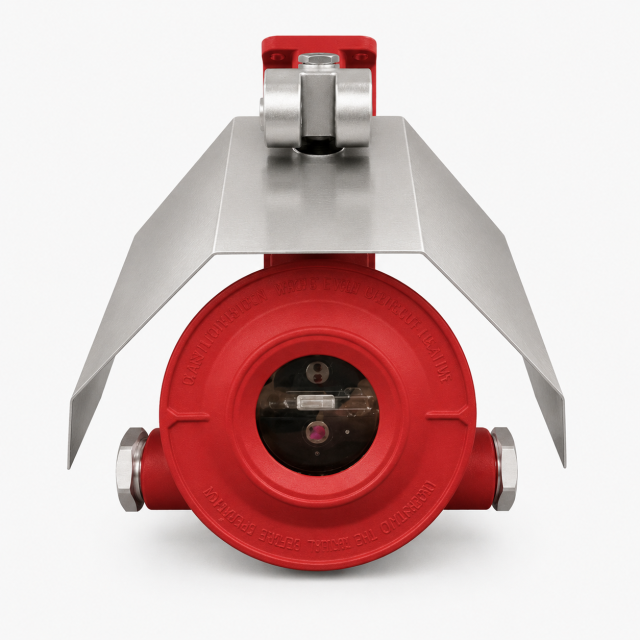

FD02-UVIR3 UV/IR Flame Detector with Weather Protection Cover

Product Description
The ANWETECH FD02-UVIR3 is a point-type UV/IR flame detector developed for rapid and dependable detection of open flames in industrial environments. It combines an infrared sensor and a solar-blind ultraviolet sensor with integrated signal processing to improve flame detection performance while enhancing immunity to false alarms.

The detector is designed for hazardous areas and features an explosion-proof aluminum alloy enclosure with IP66 / IP67 protection. It operates on 24 VDC and provides both relay output and 4-20 mA current loop output for easy integration with fire alarm panels, control systems and industrial monitoring systems.

With a wide 120° field of view and long detection distance for multiple fuels, the FD02-UVIR3 is suitable for applications such as petrochemical facilities, oil depots, gas stations, chemical plants, storage areas and other locations where reliable flame detection is required.

Key Features

• UV/IR flame detector for fast open flame detection
• Explosion-proof design for hazardous areas
• Explosion-proof marking: Ex db IIC T6 Gb / Ex tb IIIC T80°C Db
• IP66 / IP67 protection rating
• 24 VDC operating voltage
• Relay output for fire alarm and fault signal
• 4-20 mA current loop output for system integration
• Wide 120° field of view
• Long detection distance for multiple fuels
• Solar-blind UV sensor with infrared flame detection technology
• High immunity to false alarms
• Suitable for industrial fire protection applications

Technical Specifications

Detection Performance
IR spectral range: 3.8-5.0 μm
UV spectral range: 185-260 nm
Response time:

• n-heptane flame: ≤ 10 s
• hydrogen flame: ≤ 5 s
  Field of view: 120°
  Optical integrity: Yes

Detection Distance
n-Heptane, 0.3 m × 0.3 m flame: 60 m
Gasoline, 0.3 m × 0.3 m flame: 50 m
Diesel, 0.3 m × 0.3 m flame: 45 m
Kerosene, 0.3 m × 0.3 m flame: 45 m
Alcohol, 0.3 m × 0.3 m flame: 35 m
Paper, 0.5 m × 0.2 m flame: 35 m
Methane, 0.7 m flame height: 30 m
Hydrogen, 0.7 m flame height: 20 m
Silane, 0.7 m flame height: 10 m

Electrical
Operating voltage: 24 VDC (18-30 VDC)
Operating current:

• Relay type: supervision ≤ 30 mA, alarm ≤ 35 mA
• Current loop type: supervision ≤ 35 mA, alarm ≤ 55 mA

Outputs
Power input: +24V / GND
4-20 mA output: MA
Fire alarm relay output: FRJK / FRJD (normally open)
Fault relay output: FLJK / FLJD (normally closed in normal condition, opens in fault alarm)

4-20 mA Loop Output
End-of-line resistance: 100-600 Ω
Fault alarm: ≤ 2 mA
Normal operation: 4 mA
Fire alarm: 20 mA

Environmental
Operating temperature: -40°C to +70°C
Storage temperature: -40°C to +85°C
Humidity range: 0-96% RH (40±2°C), non-condensing
Short-term tolerance: 100% humidity with condensation

Mechanical
Housing material: Aluminum alloy (ADC12)
Protection rating: IP66 / IP67
Mounting options: Wall mounting / ceiling mounting

Applications

• Petrochemical plants
• Oil depots and tank farms
• Gas stations and fuel transfer areas
• Chemical plants
• Solvent and alcohol storage areas
• Loading and unloading areas
• Industrial process zones
• Hazardous area fire protection systems

Installation & Maintenance Notes

• Installation and commissioning should be carried out by trained personnel.
• Disconnect power before wiring.
• Recommended cable cross-section: minimum 1.0 mm².
• Clean the optical window at least once a year.
• Use a soft cloth or compressed air to remove dust.
• If oil contamination exists, clean with alcohol and a lint-free cloth.
• After maintenance, perform a functional test.
