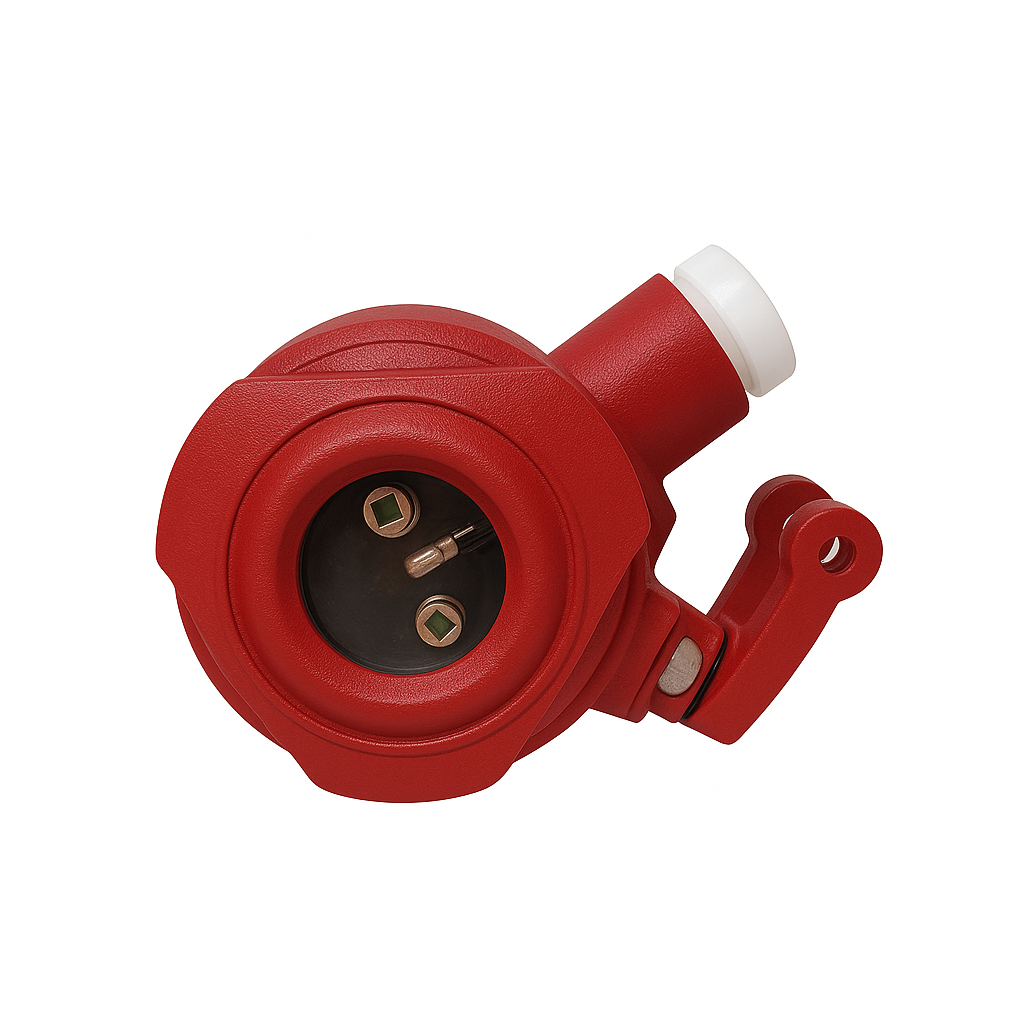

The FD01-IR3 Explosion-Proof Flame Detector is a high-performance triple-infrared (IR3) detector designed for fast, reliable flame recognition in hazardous and industrial environments.
It utilizes three infrared sensors and advanced digital signal processing to accurately identify the spectral signature of real flames while rejecting false alarms caused by sunlight, reflections, welding, and hot surfaces.
Built with a cast-aluminum explosion-proof enclosure and rated IP66, the FD1-IR3 ensures long-term durability, stability, and corrosion resistance in harsh conditions such as oil & gas fields, chemical plants, and storage facilities.
Triple-Infrared (IR3) flame detection for precise and reliable performance
Excellent immunity to false alarms (sunlight, welding arcs, hot objects)
Fast flame response within 3–5 seconds typical
120° wide field of view
Intelligent algorithm for flame pattern recognition
Explosion-proof housing certified Ex db IIC T6 Gb / Ex tb IIIC T80°C Db
IP66 dust- and water-proof protection
Compact and lightweight aluminum construction (≈0.7 kg)
Dual relay outputs for alarm and fault
Built-in self-diagnostic and Optical Integrity (OI) checking
| Parameter | Specification |
|---|---|
| Detection Type | Triple Infrared (IR3) |
| Spectral Range | 4.3 – 5.0 µm (3 channels) |
| Field of View | 120° |
| Response Time | ≤ 5 s |
| Operating Voltage | 24 VDC (18 – 30 VDC) |
| Output Signal | Two Relay Outputs (Alarm / Fault) |
| Contact Rating | 1 A @ 30 VDC |
| Operating Temp | –40 °C ~ +70 °C |
| Humidity Range | 0 – 96 % RH (non-condensing) |
| Housing Material | Cast Aluminum |
| Protection Rating | IP66 |
| Explosion Rating | Ex db IIC T6 Gb / Ex tb IIIC T80 °C Db |
| Weight | 0.7 kg |
| Dimensions | 120 × 95 × 85 mm |
| Conduit Entry | 1 × NPT 3/4″ |
Oil & Gas Facilities · Chemical Plants · Power Stations · Offshore Platforms · Storage Areas · Industrial Warehouses
