Overview

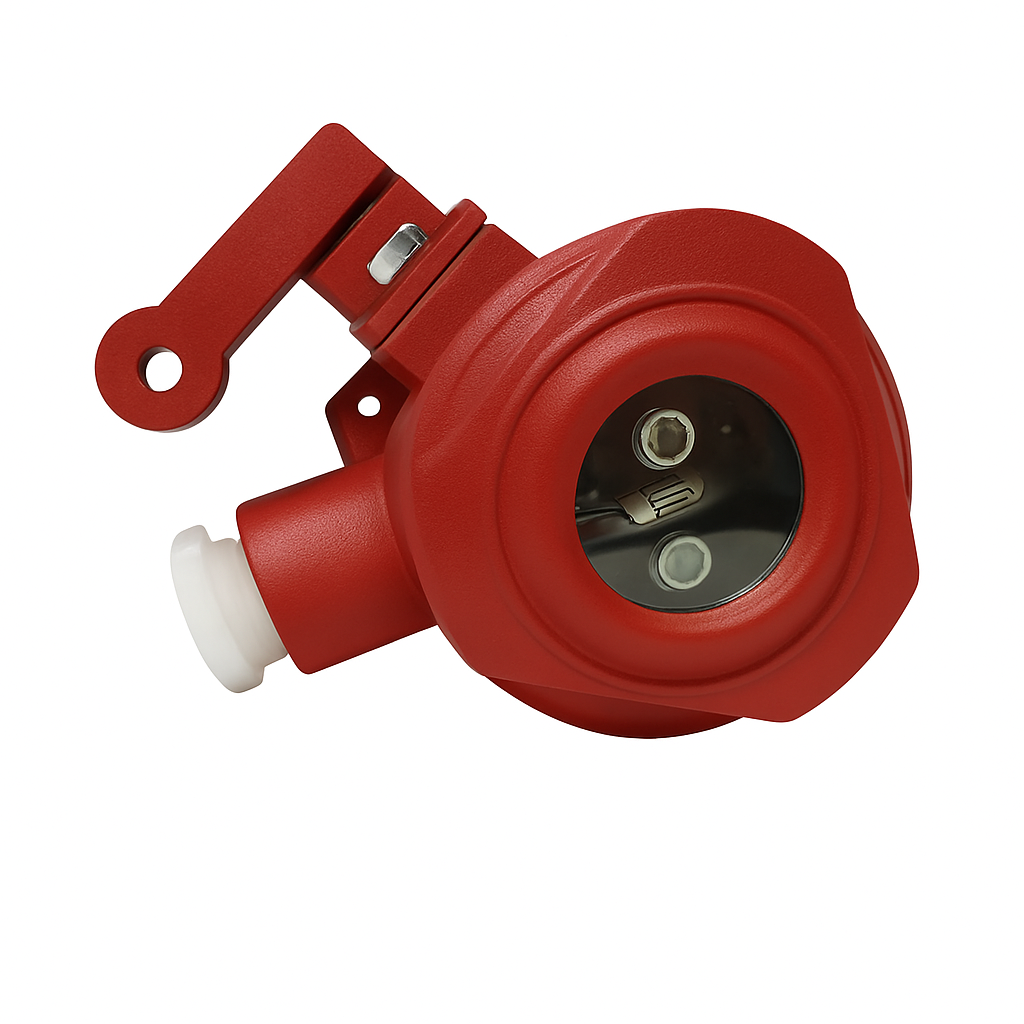

The FD1-UVIR2 Explosion-Proof Flame Detector is an advanced UV/IR2 fire detection device engineered for hazardous industrial environments.
It provides high sensitivity to hydrocarbon-based flames while maintaining strong immunity against false alarms caused by sunlight, electrical arcs, and welding sparks.
With dual-spectrum sensors and a 32-bit microprocessor, the FD1-UVIR2 ensures accurate, fast, and stable performance under harsh operating conditions.
Constructed from corrosion-resistant cast aluminum with IP66 protection and Ex db IIC T6 Gb / Ex tb IIIC T80°C Db explosion-proof certification, it delivers unmatched reliability for oil, gas, and chemical safety applications.
Dual-spectrum UV/IR2 sensing technology
Intelligent algorithm for accurate flame discrimination
120° wide field of view
Fast response to hydrocarbon fires
Built-in Optical Integrity (Self-Check) function
Explosion-proof cast aluminum housing
IP66 protection against dust and water
Lightwight (0.7 kg) and compact
Two relay outputs for alarm and fault
Technical Specifications
| Parameter | Specification |
|---|---|
| Spectral Range | IR: 4.3–5.0 μm; UV: 185–260 nm |
| Field of View | 120° |
| Optical Integrity (OI) | Yes |
| Operating Voltage | 24 V DC (18 – 30 V DC) |
| Operating Current | ≤ 50 mA |
| Output Signal | Two Relay Outputs (Alarm / Fault) |
| Contact Rating | 1 A @ 30 V DC |
| Operating Temperature | –40 °C ~ +70 °C |
| Storage Temperature | –40 °C ~ +85 °C |
| Humidity Range | 0 ~ 96% RH (Non-condensing) |
| Housing Material | Cast Aluminum |
| Protection Rating | IP66 |
| Explosion Rating | Ex db IIC T6 Gb / Ex tb IIIC T80°C Db |
| Weight | 0.7 kg |
| Dimensions | 120 × 95 × 85 mm |
| Conduit Entry | 1 × NPT 3/4″ |
Oil & Gas Facilities · Petrochemical Plants · Offshore Platforms · Power Stations · Industrial Warehouses · Chemical Storage Zones
