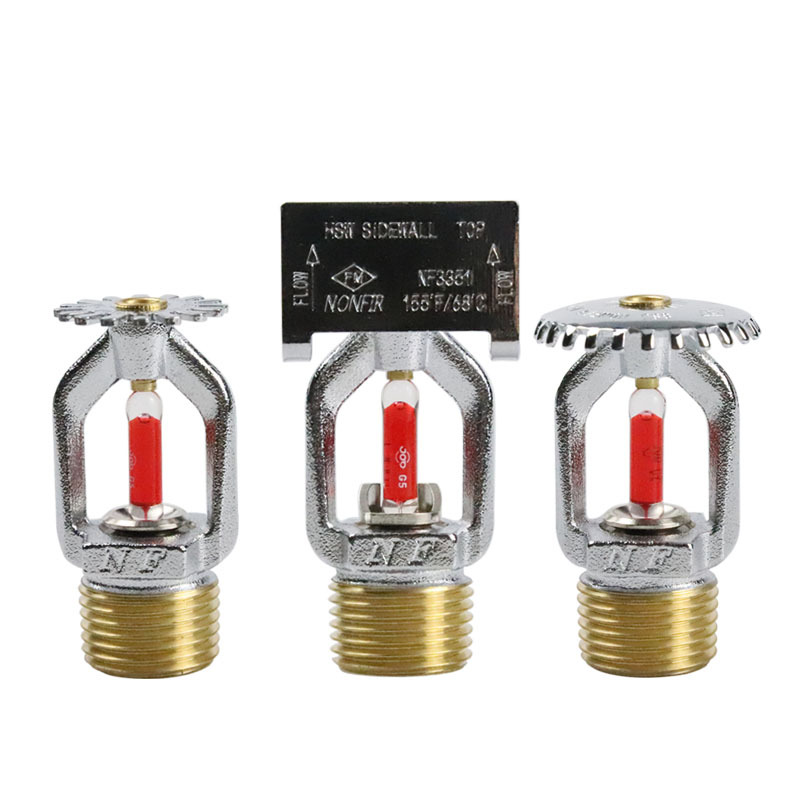

FM approved Standard & Quick Response Fire Sprinklers | K5.6 (80.6) Upright, Pendent, Sidewall |

Product Details Description

The  Fire Sprinklers combine robust design, high reliability, and superior heat sensitivity for rapid response in commercial and industrial fire protection systems. Available in Standard Coverage and Quick Response types, these sprinklers meet NFPA,standards, ensuring full compliance with international safety codes.

Each sprinkler features a K5.6 (80.6) flow rate with optimized deflector geometry for uniform water distribution. The heat-responsive glass bulb operates at 68 °C, ensuring dependable activation. Frames and deflectors are made from copper alloy or SS304, providing excellent corrosion resistance and long-term durability.

The series includes:

• Upright, Standard Coverage

•  Pendent, Standard Coverage

•  Sidewall, Standard Coverage

• Quick Response Types

Ideal for offices, warehouses, retail buildings, schools, and industrial plants, these sprinklers deliver both aesthetic versatility and high-performance safety.

Key Features

• Available in upright, pendent, and sidewall configurations

• Standard and Quick Response types for flexible application

• K-factor: 5.6 (80.6) for optimized hydraulic performance

• Heat-sensitive glass bulb (68 °C standard, optional ratings)

• Durable copper alloy / stainless-steel construction

• Easy installation with ½″ NPT or ISO 7-1 threads

• IP corrosion-resistant coating with optional wax finish

• Operating pressure: 7 psi (0.5 bar) min, 500 psi (34.5 bar) max

• Working temperature range: −15 °C ~ +40 °C storage / installation

• Maintenance-friendly design with replaceable protective clip

Technical Specifications

Applications

• Commercial buildings and shopping malls

• Industrial factories and warehouses

• Hotels, schools, and hospitals

• Residential and office complexes

• Fire suppression systems requiring standard or quick response
