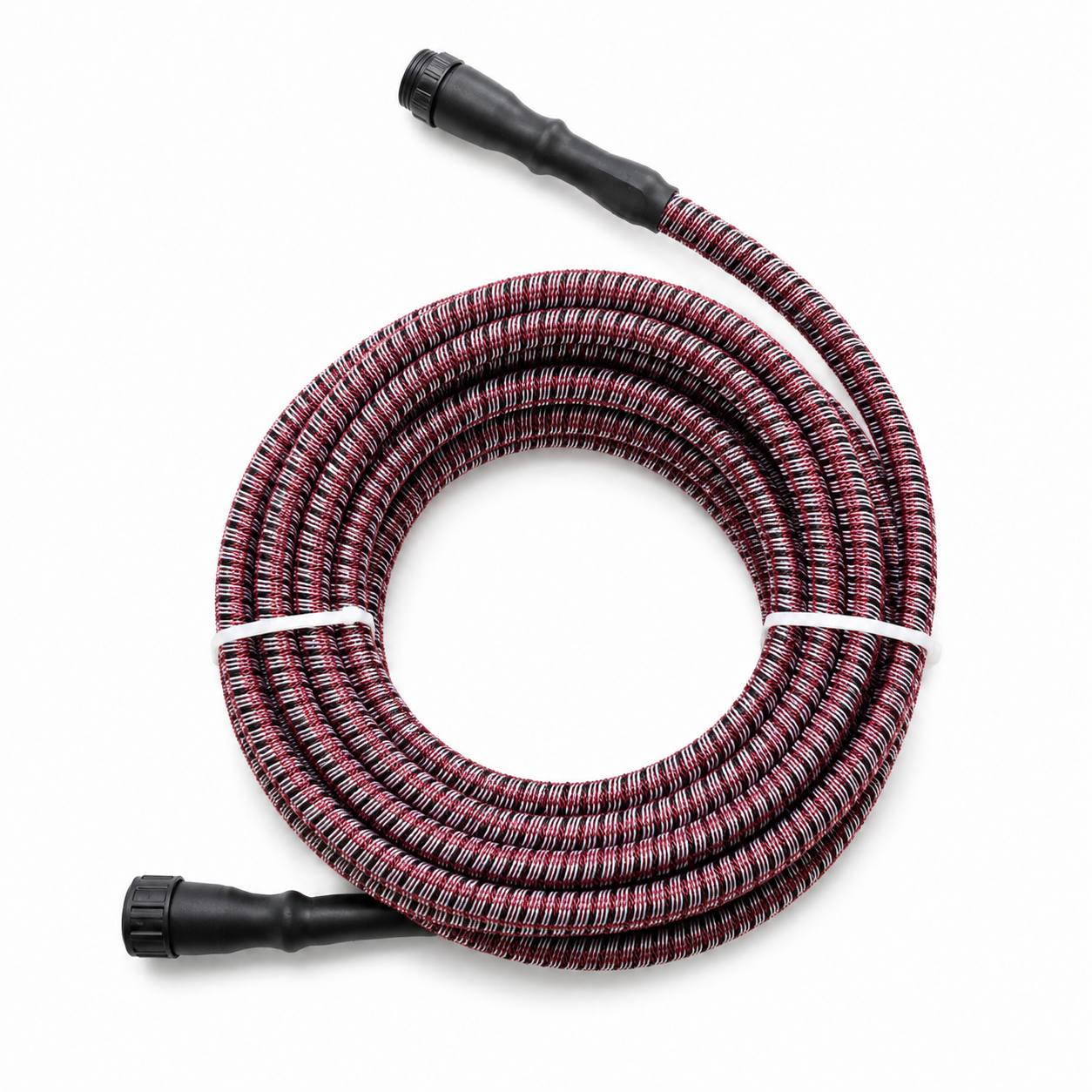

The AT-LS102 Liquid Hydrocarbon Fuel Sensing Cable is a distributed leak detection cable designed for liquid hydrocarbon fuel applications. It detects the presence of fuel along the sensing cable and can work together with a suitable leak detection controller and location controller to trigger an alarm and indicate the leak position accurately.
This cable is suitable for wide-area fuel leak monitoring where leakage may occur at different points along a tank area, trench, pipeline route or double-contained equipment area. Its non-water-reactive design allows it to be used in environments where water exposure may occur without causing a water-based response.
| Item | Specification |
|---|---|
| Product Name | Liquid Hydrocarbon Fuel Sensing Cable |
| Model | AT-LS102 |
| Brand | ANWETECH |
| Product Category | Liquid hydrocarbon leak detection sensing cable |
| Cable Diameter | 0.28 in / 7 mm nominal |
| Cable Diameter with Connector | 0.52 in / 13 mm nominal |
| Cable Weight | 2.4 lb / 1.1 kg for 50 ft / 15 m length |
| Operating Temperature Range | -4°F to 140°F / -20°C to 60°C |
| Tension Limit | No more than 50 lb / 22.7 kg |
| Minimum Bending Radius | 2 in / 50 mm |
| Pressure Alarm Condition | Alarm is triggered when load exceeds 20 lb / 9 kg per linear inch at 68°F / 20°C |
| After Fuel Contact | The sensing cable must be replaced after contact with hydrocarbon liquid |
In accordance with ASTM D543 test conditions, the cable remains in normal use after 7 days of exposure to the following chemicals at 73°F / 23°C.
| Chemical | Concentration |
|---|---|
| Sulfuric Acid | 10% |
| Hydrochloric Acid | 10% |
| Nitric Acid | 10% |
| Sodium Hydroxide | 10% |
| Item | Specification |
|---|---|
| Sensing Line Leakage | Less than 10 μA when immersed in salt water for 90 days |
Response time is affected by operating temperature and liquid type. For specific response time under other temperatures or liquid conditions, please consult ANWETECH.
| Representative Liquid | Standard Response Time at 68°F / 20°C |
|---|---|
| Gasoline | 12 minutes |
| #1 Diesel Fuel | 60 minutes |
| #2 Diesel Fuel | 120 minutes |
| JP5 Jet Propulsion Fuel | 70 minutes |
| JP8 Jet Propulsion Fuel | 50 minutes |
| Jet-A Jet Propulsion Fuel | 50 minutes |
| Xylene | 20 minutes |
