3. Product Description

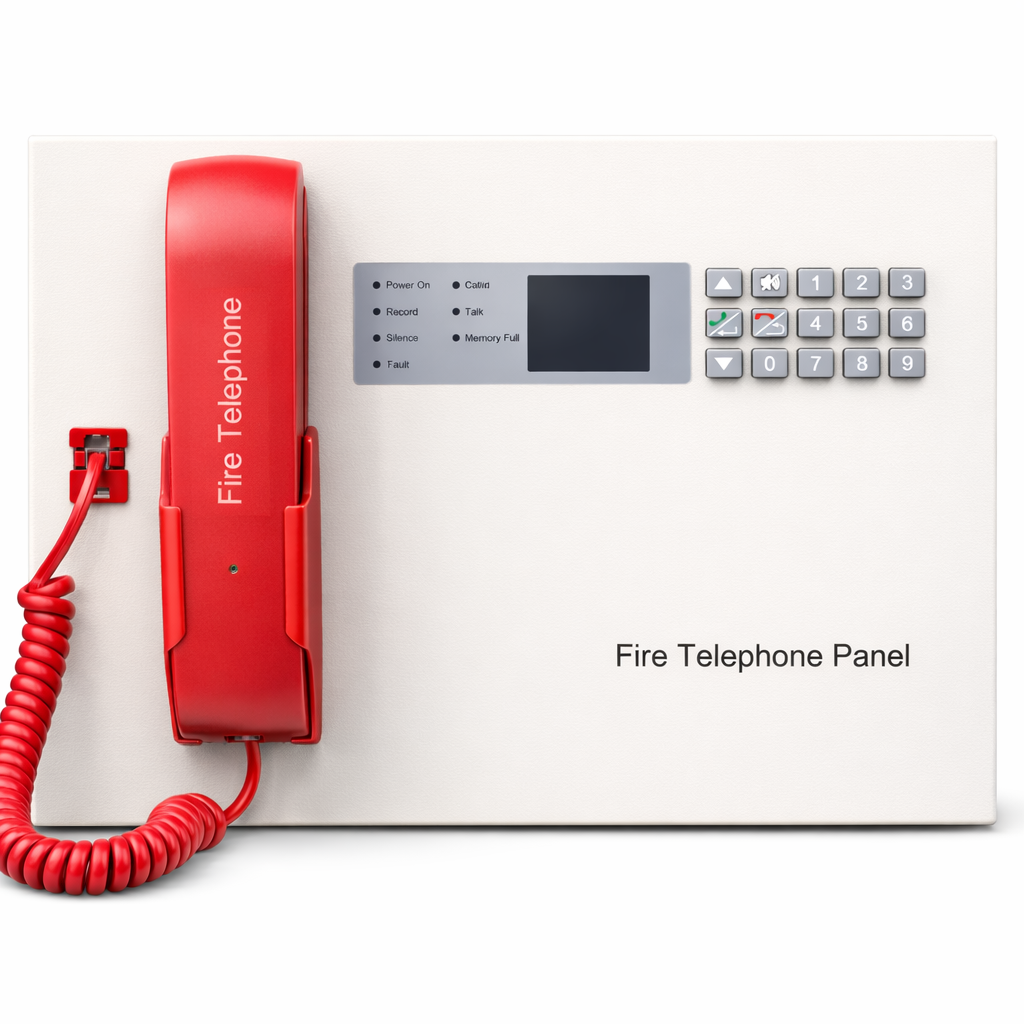

The TJ101 Fire Telephone Panel is the central controller of a dedicated fire fighters telephone system. It uses two-bus communication technology and works together with TJ201 wall-mounted extension, TJ202 hand-held extension and TJ301 fire telephone jack, plus an external DC 24 V power supply, to build a complete fire telephone network in the building.

The panel supports address codes from 1-126 with no duplication, and the address book can be created automatically by extension login or imported from an SD card using address book software. A built-in real-time clock with backup battery keeps time even during power loss, ensuring accurate time stamps for every incident.

During a fire or emergency, the operator in the fire control room can call up to five extensions at the same time, or any extension can lift the handset / plug into a jack to automatically call the panel. The panel automatically records the time, address and voice content of each conversation (up to 24 minutes total) and stores 999 incident records for later query and playback.

All parameter settings are protected by a two-level password system (user / admin), avoiding accidental changes. With a communication distance up to 2000 m, simple two-wire bus wiring and compact wall-mounted housing, TJ101 is ideal for fire telephone systems in office buildings, shopping malls, hospitals, schools, factories, warehouses and other public or industrial facilities that require GB16806-compliant fire emergency communication.

4. Key Features

• Wall-mounted fire telephone master panel using two-bus communication

• Works with TJ201 / TJ202 fire telephone extensions and TJ301 fire telephone jack

• Address range 1-126, with no duplicate address code

• SD-card address book import for quick commissioning and maintenance

• Built-in real-time clock with internal battery, timekeeping continues when power is off

• Panel can call and talk with 1–5 extensions simultaneously

• Extensions or jacks can automatically call the panel when the handset is picked up / plugged in

• Automatic recording of call time, address and content, plus incident query and playback

• 24-minute voice recording capacity and 999 incident records

• Two-level password protection (default user password 1111, admin password 2222) to secure settings

• Clear fault indication for bus fault, extension fault, jack fault, not-hung-up status, with sound and light alarm

• Self-test function for all LEDs, buzzer, handset and LCD backlight

• Designed to meet the requirements of GB16806-2006 “Fire Linkage Control System”

• Simple two-wire bus, up to 2000 m communication distance

5. Technical Specifications

5.1 TJ101 Fire Telephone Switchboard

5.2 Fire Telephone Extension – TJ201 / TJ202

5.3 Fire Telephone Jack – TJ301

5.4 Wiring Requirements

• Use twisted pair with cross-section ≥ 1.0 mm²; for wiring distance > 1000 m, use ≥ 1.5 mm²

• Keep bus cables away from strong interference sources as far as possible

• DC 24 V power supply must not be reversed

• The chassis of the panel must be reliably connected to protective earth (PE)

6. Recommended Applications

• Central fire control room fire fighters telephone system

• High-rise office buildings and commercial complexes

• Shopping malls, supermarkets and logistics warehouses

• Hospitals, schools, hotels and public buildings

• Industrial plants, power stations, petrochemical sites and other projects that require a -compatible fire emergency communication system
