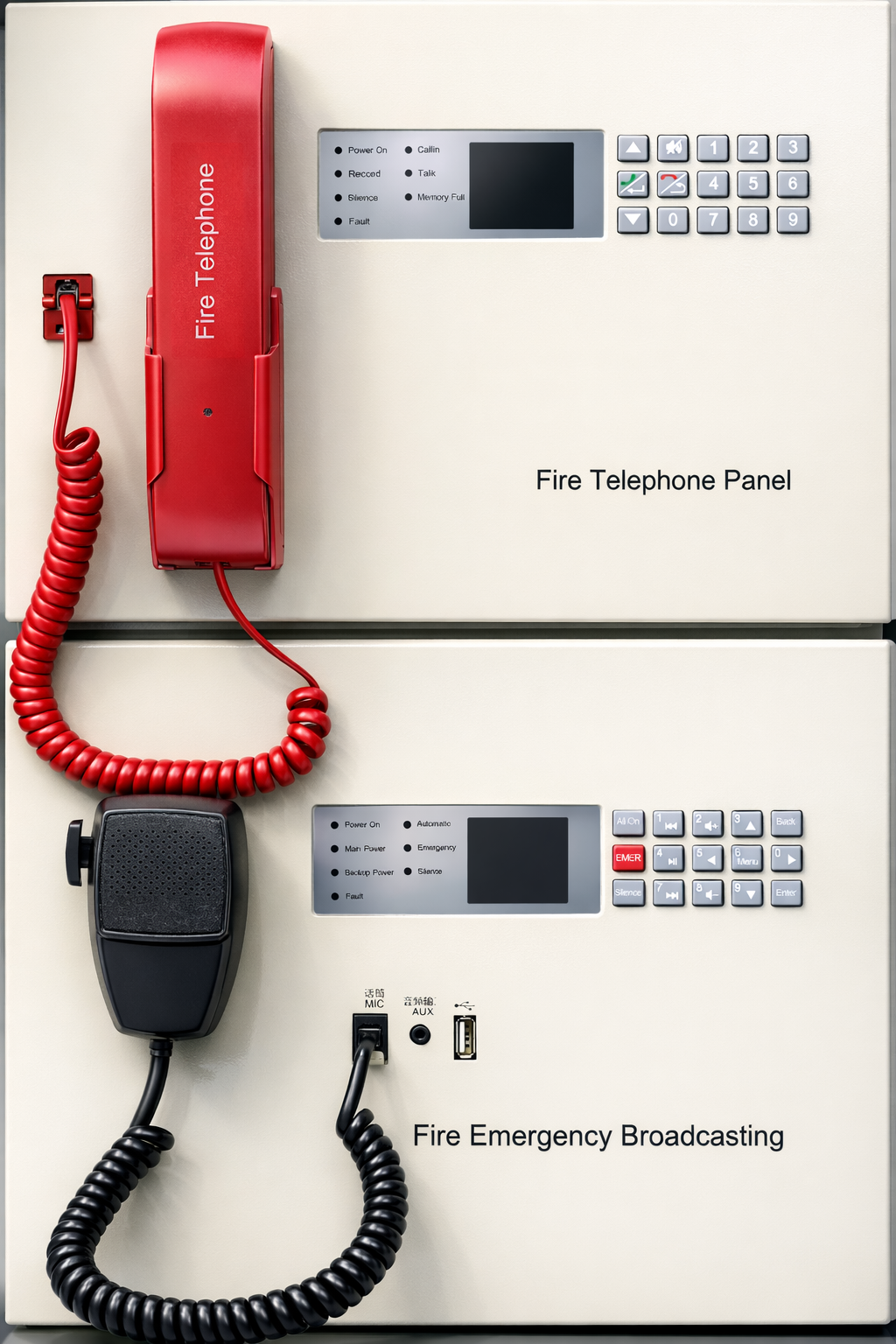

Two-in-One Fire Telephone & Emergency Voice Panel 150W

Product Description

The  AT-FR107 two-in-one fire telephone and emergency voice panel integrates a fire telephone switchboard and a 150W emergency broadcasting host in one wall-mounted cabinet. Fire fighters can communicate through extensions and jacks, while the panel can broadcast pre-recorded emergency messages, microphone announcements, music or AUX audio to 120 V constant-voltage loudspeakers.

ANWETECH TWO IN ONE TELEPHONE …

The telephone part supports up to 126 addresses, SD-card address book import, call recording and incident recording; the broadcasting part offers four broadcast modes (EMER, MIC, USB, AUX), line supervision, power fault alarm, and overload protection. This makes it a cost-effective choice for shops, schools, small office buildings, warehouses and other projects where fire telephone and emergency broadcasting must work together.

Key Features

• Two systems in one: fire telephone switchboard + 150W emergency voice panel

• Up to 126 fire telephone addresses, no duplicate address code

• SD card address book import, call recording (24 min) and incident log (999 events)

• Emergency broadcasting with EMER, MIC, USB (MP3) and AUX audio sources

• Fixed 120 VAC constant-voltage output for standard fire speakers

• Automatic line supervision and power fault alarm (sound & light)

• Overload protection: reduces output voltage for minor overloads and shuts down output under severe overload

• Wall-mounted metal cabinet, compact size and easy installation

• Designed according to GB16806-2006 Fire Linkage Control System requirements

  ANWETECH TWO IN ONE TELEPHONE …

Technical Specifications

Fire Telephone Switchboard (TJ101)

• Address range: 1–126 (no duplicate code)

• Communication distance: up to 2000 m

• Output voltage: 30 V / 36 V

• Output current: 60 mA

• Voice frequency: 300 Hz – 3400 Hz (±3 dB)

• Transmission attenuation: ≤ 5 dB

• Call recording time: 24 min

• Event recording: 999 records

• Dimensions: 318 × 245 × 129.5 mm (129.5 mm includes handset)

• Installation: Wall mounted

Fire Emergency Broadcasting Host (AT-FR104)

• Rated output power: 150 W

• Rated output current: 1.25 A

• Output voltage: fixed 120 VAC constant-voltage output

• Mains input: AC 187–242 V

• Frequency response: 80 Hz – 8 kHz (±3 dB)

• Harmonic distortion: ≤ 5 %

• Signal-to-noise ratio: ≥ 70 dB

• Recording duration: 30 min (emergency messages)

• Cooling method: Natural cooling

• Dimensions: 318 × 245 × 127 mm (127 mm includes microphone protrusion)

• Installation: Wall mounted

• Operating environment: 0 °C – 40 °C; ≤95 % RH non-condensing
