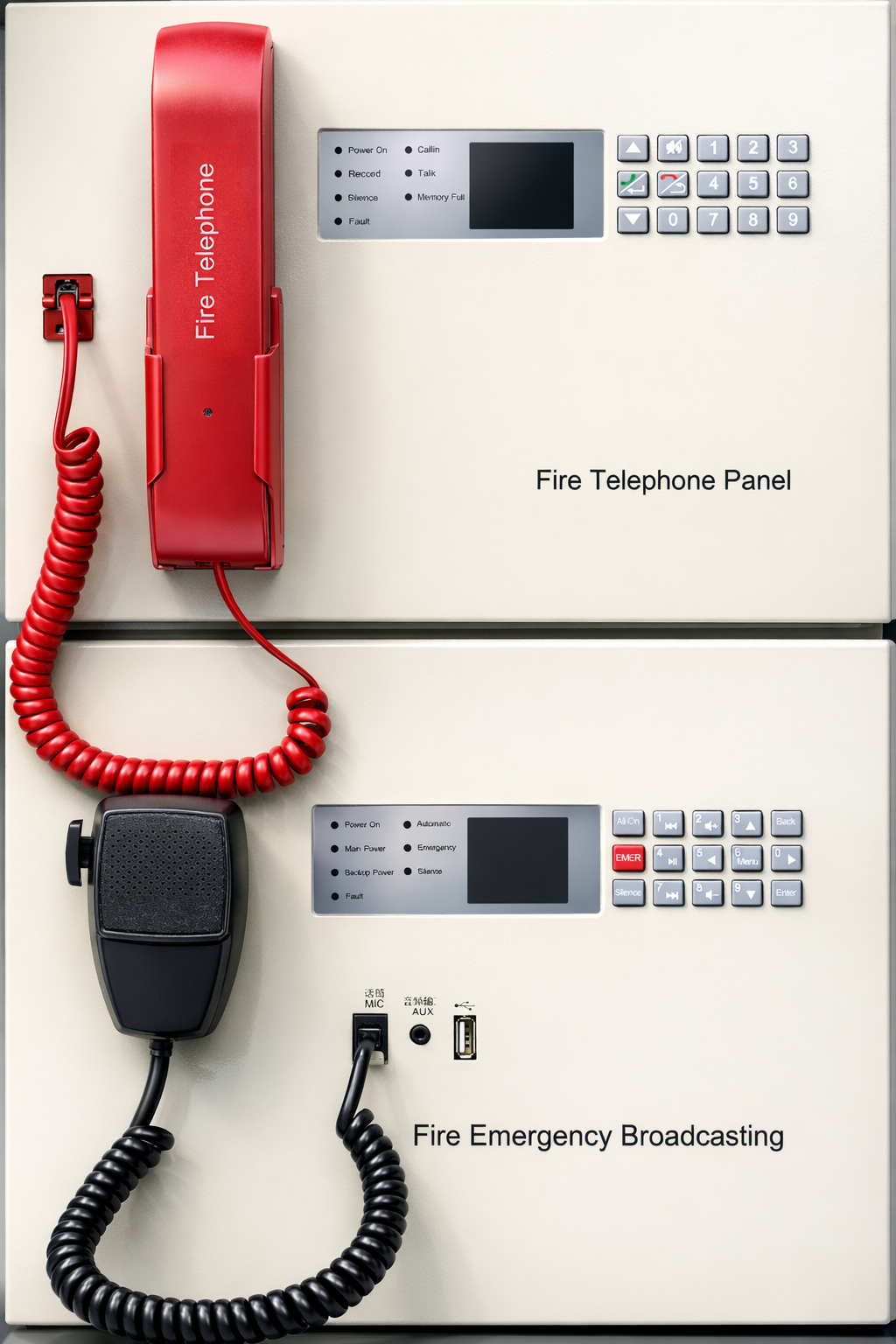

Two-in-One Fire Telephone & Emergency Voice Panel 350W

Product Description

The FR108 two-in-one fire telephone and emergency voice panel integrates a full-function fire telephone switchboard with a 350 W emergency broadcasting host. The telephone function provides up to 126 addresses, SD-card address book import, automatic extension login, call recording and detailed incident logs

The FR105 voice panel supports EMER Radio, MIC, USB (MP3) and AUX broadcast modes, with fixed 120 V constant-voltage output for fire loudspeakers. Compared with the 150 W version, the 350 W model offers higher output power and intelligent programmable air-cooled (fan) cooling, suitable for large shopping centres, office complexes, factories and public buildings that need wide coverage of emergency voice evacuation.

Key Features

• Integrated fire telephone switchboard + 350W emergency voice broadcasting host

• Up to 126 fire telephone addresses with SD-card address book import

• Real-time clock with battery backup; call and event recording for easy traceability

• Four broadcast modes: EMER, MIC, USB, AUX, with 30-minute recording capacity for emergency messages

• High-power 120 VAC constant-voltage output (350 W) for large speaker loads

• Intelligent programmable air-cooled fan system for reliable long-term operation

• Constant-voltage line supervision and power fault detection with sound & light alarm

• Overload protection: automatic voltage reduction and output shut-off under heavy fault conditions

• Wall-mounted cabinet design, easy wiring and commissioning according to GB16806 requirements

  ANWETECH TWO IN ONE TELEPHONE …

Technical Specifications

Fire Telephone Switchboard (TJ101)

• Address range: 1–126 (no duplicate code)

• Communication distance: up to 2000 m

• Output voltage: 30 V / 36 V

• Output current: 60 mA

• Voice frequency: 300 Hz – 3400 Hz (±3 dB)

• Transmission attenuation: ≤ 5 dB

• Call recording time: 24 min

• Event recording: 999 records

• Dimensions: 318 × 245 × 129.5 mm

• Installation: Wall mounted

Fire Emergency Broadcasting Host (FR105)

• Rated output power: 350 W

• Rated output current: 2.92 A

• Output voltage: fixed 120 VAC constant-voltage output

• Mains input: AC 187–242 V

• Frequency response: 80 Hz – 8 kHz (±3 dB)

• Harmonic distortion: ≤ 5 %

• Signal-to-noise ratio: ≥ 70 dB

• Recording duration: 30 min

• Cooling method: Intelligent programmable air-cooled (fan)

• Dimensions: 318 × 245 × 127 mm

• Installation: Wall mounted

• Operating environment: 0 °C – 40 °C; ≤95 % RH non-condensing
