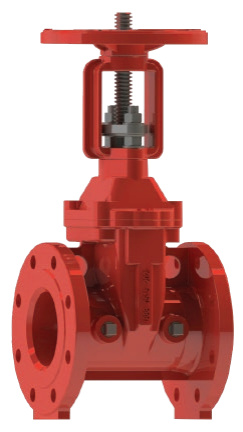

UL FM Approved OS&Y Flanged Gate Valve

Product Description

This UL & FM approved OS&Y Gate Valve is a high-reliability isolation valve designed for fire protection systems, sprinkler networks, and industrial water supply applications. The outside screw & yoke (OS&Y) rising-stem design provides clear visual indication of valve status, making it ideal for life-safety and critical infrastructure installations.

The valve body is manufactured from high-strength ductile iron and coated with fusion-bonded epoxy (inside & outside) for long-term corrosion resistance. Stainless-steel stem construction ensures stability and durability under high pressure and demanding working environments. Suitable for commercial buildings, industrial facilities, fire pump rooms, hydrant systems, and water-based fire suppression networks.

Key Features

• UL Listed & FM Approved for fire protection systems

• Rising stem OS&Y design for visible open/close indication

• Stainless-steel stem for superior corrosion resistance

• Ductile iron body and bonnet (ASTM A536 65-45-12)

• Fusion-bonded epoxy coating (RAL3002) inside & out

• EPDM-sealed wedge for reliable shutoff

• Graphite packing for long-term sealing performance

• Working pressure: 365 psi

• Temperature range: –10°C to 120°C

• Flanged ends conform to AWWA C515 / BS5163 / EN1092-2 PN16 / ANSI B16.1 Class 125 / ANSI B16.5 Class 150

Materials of Construction

Dimensions (inch/mm)

Net Weight & Crate Quantity
