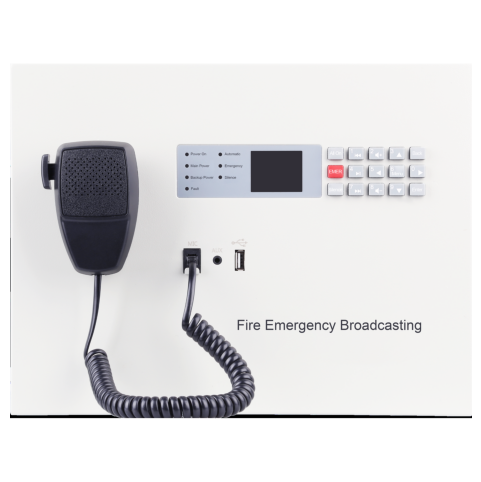

FR105 is a 350 W high-power wall mounted fire emergency voice control panel for medium and large building projects. It offers emergency voice broadcasting, MIC paging, USB / MP3 and AUX audio input with 120 V constant-voltage speaker output, programmable air-cooled design and comprehensive fault monitoring, ideal for large-area fire emergency broadcasting and voice evacuation systems.
FR105 fire emergency broadcasting panel integrates an area control panel, audio source module and 350 W high-power broadcasting amplifier in a wall-mounted enclosure. Connected to a fire alarm linkage controller, output modules and constant-voltage speakers, it forms a powerful voice evacuation system for large public or industrial buildings.
When an alarm signal is received from the fire linkage controller, FR105 switches automatically to emergency broadcasting and plays pre-recorded fire messages or live MIC paging to all connected loudspeakers. With higher output power and an air-cooled design, FR105 is suitable for malls, large office buildings, exhibition halls, factories, warehouses, schools, hospitals, airports and other medium- to large-scale projects.
Wall mounted 350 W high-power fire emergency broadcasting and voice control panel
Designed for medium and large fire emergency broadcasting zones
Works with fire alarm linkage controllers via 24 V start signal
120 V constant-voltage speaker output for wide-area emergency broadcasting
Four broadcast modes: emergency audio (EMER), MIC paging, USB / MP3 playback and AUX external audio input
Emergency message can be recorded via MIC or imported via USB flash drive (up to 30 s)
30-minute loop recording for broadcast and operation records
Automatic fault monitoring of speaker line, main power and standby power with clear visual and audible alerts
Intelligent overload protection for safe long-term operation
Optional communication module for integration with the fire linkage controller
One-key self-test to check indicators, buzzer and LCD backlight
Intuitive LCD interface with full menu operation
Built-in fuse for short-circuit protection
Programmable air-cooled design to handle continuous 350 W output in harsh conditions
Working Environment
Ambient temperature: 0 °C to 40 °C
Relative humidity: ≤ 95% RH, non-condensing
Electrical
Mains input: AC 187 V to AC 242 V
Speaker output: 120 VAC constant-voltage line
Rated output power: 350 W
Frequency response: 80 Hz to 8 kHz (±3 dB)
Harmonic distortion: ≤ 5%
Signal-to-noise ratio: ≥ 70 dB
Recording
Recording time: 30 minutes loop recording
Mechanical
Installation type: wall mounted
Approximate dimensions: 318 mm × 245 mm × 127 mm (including front part about 39 mm
Speaker line: twisted pair cable ≥ 1.5 mm², insulation to ground > 20 MΩ; 120 V constant-voltage speakers with isolation capacitor 1 µF / 250 V
Main power, backup power, emergency start input, speaker output, communication port, MIC input, AUX input, USB port
Large shopping malls and retail centres
Large office buildings, mixed-use complexes and hotels
Factories, production halls and big warehouses
Schools, universities, stadiums and public halls
Hospitals, airports, stations and other high-occupancy buildings
